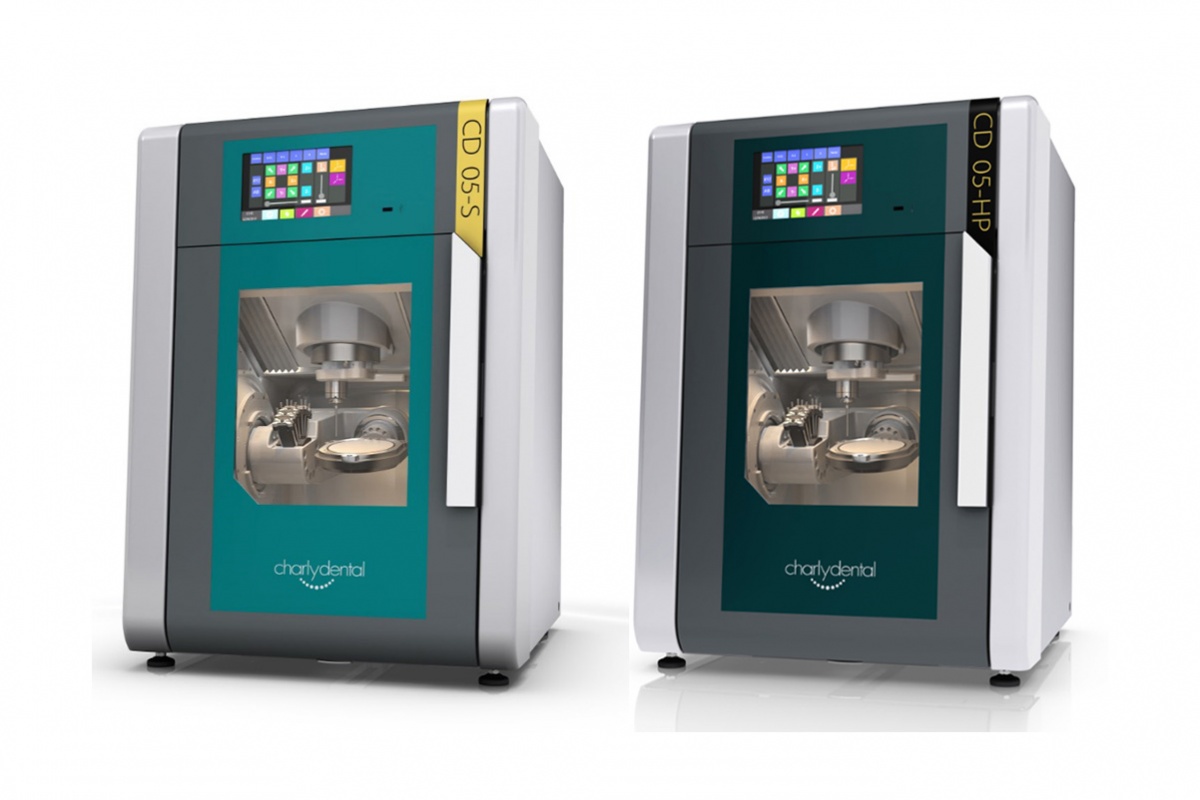

CHARLYDENTAL CD05-S/CD05-HP

Machining machines for dental prostheses in 5 positioned axes, ideal for a simple and fast daily production of prostheses in soft and ceramic materials, dry or with lubricated tool.

  • Descrizione
  • Dati tecnici

Very compact in size thanks to the original choice of kinematics, they offer maximum versatility in a minimum of space.

They are equipped with an open CAD / CAM system capable of being used with the main scanners, CAD / CAM software and consumables in the dental sector.



Other strong points of this concentrate of design and manufacturing innovation "100% French":

  • Power reserve by 500 or 980 W spindle - 60,000 rpm and brushless servomotors.
  • Flexibility and precision of machining with angulation of the rotary axes.
  • 5th axis: 0 to 180 °.
  • Precision by quality kinematics, ball screws and rectified rails.
  • Easy to use thanks to its color touch screen and user-friendly machine control software.
  • Efficient automatic management of tool changes and sister tools, detection of tool wear and breakage.

TECHNICAL CHARACTERISTICS

  • Brushless servo motors
  • Spindle 500 or 980 W / 60,000 rpm
  • Automatic tool change (with 12 tools in the changer)
  • Precision measurement of tool length
  • Tool breakage detection
  • Tool wear detection
  • Integrated suction sensor
  • Communication port: 1 USB and 1 ETHERNET
  • Power supply: 230 VAC 50/60 Hz

DIMENSIONS

  CD05-S CD05-HP
Lenght 542 542
Width 600 600
Height 737 737
Weight 100 100
